Are all DisplayPort cables active?


All DisplayPort to VGA adapters are active. DisplayPort to HDMI and DisplayPort to DVI adapters can be either active or passive. Active DisplayPort adapters have a chip (semiconductor) to boost the performance of that device. If there is no chip, the adapter is considered passive.

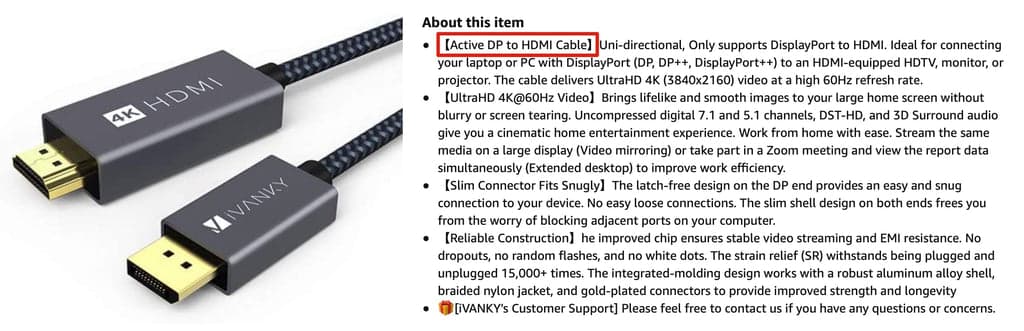

What is an active DisplayPort cable?

An Active DisplayPort adapter has an integrated circuit to convert a DisplayPort signal to HDMI, DVI, or VGA. DisplayPort uses a different digital signaling type than HDMI and DVI (which use the same type), both of these signaling types are very different from VGA’s analog signal.

What is the difference between active and passive DisplayPort?

The difference between an Active and a Passive DisplayPort adaptor is a circuit that makes the conversion happen. Active DisplayPort adaptors have a chip that makes the conversion happen while passive DisplayPort adaptors do not.

Do I need active or passive DisplayPort adapter?

If the source supports dual-mode DisplayPort (also known as DP++), then you can use a passive adapter because the source can perform the conversion. If the source does not support DP++, then you must use an active converter, which includes additional chips to perform the conversion.

Is DisplayPort to HDMI passive?

An HDMI to DisplayPort conversion always requires an active instead of a passive adapter.

What is the difference between active and passive DisplayPort?

The difference between an Active and a Passive DisplayPort adaptor is a circuit that makes the conversion happen. Active DisplayPort adaptors have a chip that makes the conversion happen while passive DisplayPort adaptors do not.

What is a passive cable?

Without an electronic circuit a cable is considered a ‘passive’ cable. Passive cables are liable to degrade the data they carry, due to “channel impairments” including attenuation, crosstalk and group velocity distortion.

What is an active connector?

For the purposes of the Alameda County Incentive Project, the number of active connectors refers to the number of DCFC connectors that can concurrently supply the rebated power level at any one time.

How do I know if my DisplayPort adapter is active?

Active DisplayPort adapters have a chip (semiconductor) to boost the performance of that device. If there is no chip, the adapter is considered passive. Basically, if the adapter includes a little box that houses the conversation chip it is active.

Is a DisplayPort better than HDMI?

Compared to standard HDMI 2.0, DisplayPort 1.4 is superior. DisplayPort 2.0 has also been announced, and it has an even higher maximum bandwidth than HDMI 2.1 at nearly triple the bandwidth of DisplayPort 1.4.

What is a dual mode DisplayPort?

A Dual-Mode DisplayPort source is a device, such as personal computer, that can logically output either DisplayPort or TMDS (Transitional-Minimized Differential Signaling) from the DisplayPort output connector, enabling the support of DisplayPort, DVI, and HDMI monitors.

Does DisplayPort to HDMI work for 144Hz?

To output 1080p content at 144Hz, you will need either Dual-Link DVI, DisplayPort, or HDMI 1.4 (or better).

Does DisplayPort to HDMI work both ways?

Solution: The adapter only converts DisplayPort signal to HDMI signal, it will not work in the opposite direction to convert HDMI signal to DisplayPort signal.

Why is my HDMI to DP cable not working?

The DisplayPort to HDMI adapter not working usually occurs if the adapter hardware is faulty. However, the issue can also be triggered due to a faulty HDMI port or even incorrect device configuration.

Can you adapt DisplayPort to HDMI?

If the DisplayPort output is a Dual mode DisplayPort then it has the ability to recognize and adjust the signal to HDMI when a passive adapter cable is connected.

How does DisplayPort HDMI work?

DisplayPort signals operate at 3.3v, even when using TMDS in compatibility mode. HDMI TMDS signals operate at 5v. An external adapter allows a dual-mode DisplayPort output to send TMDS signal, and also bumps the voltage up to the standard HDMI 5v.

Can you convert HDMI signal to DisplayPort?

The Cable Matters HDMI to DisplayPort Adapter provides a simple solution for connecting a laptop with an HDMI port to a DisplayPort monitor. Connect a USB cable to a computer USB port or USB wall charger to power the conversion from HDMI to DisplayPort.

Is a DisplayPort better than HDMI?

Compared to standard HDMI 2.0, DisplayPort 1.4 is superior. DisplayPort 2.0 has also been announced, and it has an even higher maximum bandwidth than HDMI 2.1 at nearly triple the bandwidth of DisplayPort 1.4.

What is active Mini DisplayPort?

Active Mini DisplayPort® to HDMI® Video and Audio Adapter This allows you to connect your Mini DisplayPort or Thunderbolt equipped video source (i.e. Apple MacBook Air®, MacBook Pro®, Mac Pro®, iMac®, Microsoft® Surface®, Computer, Laptop or Mini DisplayPort Graphics Card) to a HDMI based display, projector or HDTV.

What is active HDMI cable?

The active HDMI cable contains signal amplifiers that ensure that both video and audio are transferred over long distances without signal loss. Pay attention to how you connect the cable. Because it only works in one direction you must connect the source end to the source and the target end to your display.

What is dual mode DisplayPort?

A Dual-Mode DisplayPort source is a device, such as personal computer, that can logically output either DisplayPort or TMDS (Transitional-Minimized Differential Signaling) from the DisplayPort output connector, enabling the support of DisplayPort, DVI, and HDMI monitors.

What is the difference between active and passive DisplayPort?

The difference between an Active and a Passive DisplayPort adaptor is a circuit that makes the conversion happen. Active DisplayPort adaptors have a chip that makes the conversion happen while passive DisplayPort adaptors do not.
