NOTE: Daisy chaining using DisplayPort Multi-Stream Transport (MST) is supported with DisplayPort (DP) and mini-DisplayPort (mDP) cables. USB-C to USB-C daisy chaining is supported on select Dell monitors. To learn more about Multi-Stream Transport (MST) support, see the User Manual of your Dell monitor.
Can you connect 2 Dell monitors together?

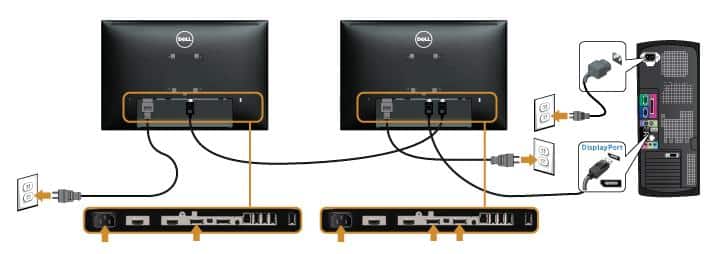

Using another cable connect the DisplayPort Out connection on the first monitor to the DisplayPort In connection on the second monitor (Figure 2). Note: To daisy chain more than two monitors, follow a similar sequence: The first monitor connects to the second, the second monitor connects to the third, and so on.
How many monitors can you daisy chain with USB-C?
Daisy chain-enabled monitors, such as Samsung’s S60UA QHD monitor with USB-C, support connection with up to four Full HD monitors — or two quad HD (QHD) monitors with a single connection between them. This eliminates the need to connect each monitor to a PC.
Can you daisy chain Dell docking stations?
DisplayPort Multi-Stream Transport allows you to daisy chain monitors with DisplayPort 1.2 ports. “Daisy chaining” describes the ability to connect a series of monitors to a single video output port on your computer or docking station.
Can you use 2 display ports at the same time?
Look at the back of your computer. You will most likely have one or more of the following video ports. SVGA, HDMI, DVI, or DisplayPort. If you have multiple ports, regardless of the combination, most video cards will allow you to use two of them simultaneously for your dual display setup.
Can USB-C run two monitors?
The USB-C laptop dock features a DisplayPort and an HDMI port, giving you the flexibility to connect your displays as needed. It supports dual monitors or a single high-resolution 4K monitor.
How do I use two monitors with USB-C?
Connect the dock to your computer with a USB-C. You should make sure that the dock you have can support two monitors and has a USB-C port. Then, connect one end of your DisplayPort or HDMI cable to the dock and the other end to a monitor. Then do the same for the second monitor, and you’ll be good to go.
How many 4K monitors can you daisy chain?
Thunderbolt supports higher bandwidth relative to DisplayPort in daisy chain, which allows for 4K@60Hz for two monitors, and up to six monitors at 1080p@60Hz.
Do Dell monitors support daisy chaining?
NOTE: Daisy chaining using DisplayPort Multi-Stream Transport (MST) is supported with DisplayPort (DP) and mini-DisplayPort (mDP) cables. USB-C to USB-C daisy chaining is supported on select Dell monitors.
Can you run 2 monitors off 1 HDMI port?
Connecting two monitors to one computer with one hdmi port can be very easy, all you have to do is insert your cables into a HDMI splitter, connect the splitter to your PC/Laptop and that’s it.
How do I connect two monitors?
Dual Monitor Cables Plug the power cords into your power strip. Connect the first monitor to your computer through the HDMI port or through a VGA port, if desired. Do the same for the second monitor. If your computer only has one HDMI port and one VGA port, which is common, find an adapter to complete the connection.
Can I connect 2 external monitors to my laptop?
Generally speaking, most Windows laptops now support dual monitors, at least. But you need to make sure your laptop is capable to add two external monitors. And that depends on your Windows operating system, the capability of your graphics cards and drivers.
How does DisplayPort daisy chain work?
“Daisy chaining” is a term that describes the ability to connect a series of devices together using a single connection between each two devices. The new DisplayPort v1. 2 daisy chainable displays have both a DisplayPort input and a DisplayPort output. The DisplayPort output connects to the next downstream display.
Can USB-C support 3 monitors?
This USB C to HDMI, VGA, Display Port Converter allow 3 External Monitors Work Simultaneously.
Is USB-C the same as Thunderbolt?
USB-C ports and Thunderbolt ports are universal, but they’re not entirely the same. Thunderbolt ports are fully compatible with USB-C devices and cables, but Thunderbolt ports offer several features that make them stand out from USB-C ports.
Can you use USB-C to HDMI for dual monitors?
Cystal 4K Video: This USB C to Dual HDMI Adapter allows you to display the content of your laptop to 2 monitors which maximum output up to 3840*2160@30hz resolution. (Single use HDMI 1 can up to 4K@60Hz under DP1.
Can all USB-C be used for display?
Yes. Adapters and Adapter cables are used to connect DisplayPort over USB Type-C to an HDMI/VGA input on the HDTV. If the HDTV has a DisplayPort input, then a USB Type-C to DisplayPort adapter cable can be used to provide DisplayPort display capability.
Can you connect monitors with USB-C?
You can drive your monitor and charge your laptop at the same time with the same cable. Since USB-C ports have a charging function, that means if you connect a USB-C monitor to a laptop via USB-C, the ports will serve two purposes.
Can Thunderbolt support two displays?
Can you daisy chain Thunderbolt 4?
Daisy-chaining this Thunderbolt 4 hub can provide up to six different devices connected. Plugable shows that one port can go to another hub that can hold all the accessories like a mouse and keyboard that a user might need as well as going to two other monitors to give a total of three screens with accessories.
Is DisplayPort better than HDMI?
Compared to standard HDMI 2.0, DisplayPort 1.4 is superior. DisplayPort 2.0 has also been announced, and it has an even higher maximum bandwidth than HDMI 2.1 at nearly triple the bandwidth of DisplayPort 1.4.
Can Studio displays be daisy chained?
They can, but as mentioned before, it seems that each monitor has to be connected directly to the thunderbolt ports of your laptop, which the new ones has 3 thunderbolts ports. My suggestion is, you can get the two monitors, buy a thunderbolt 3 or 4 HUB.
