DisplayPort (DP) is a digital display interface developed by a consortium of PC and chip manufacturers and standardized by the Video Electronics Standards AssociationVideo Electronics Standards AssociationThe VESA Enhanced Video Connector is a VESA standard intended to reduce the number of cables around a computer by incorporating video, audio, FireWire and USB into a single cable system. The intention of the system was to make the monitor the central point of connection.https://en.wikipedia.org › VESA_Enhanced_Video_ConnectorVESA Enhanced Video Connector – Wikipedia (VESA). It is primarily used to connect a video source to a display device such as a computer monitor.
Is DisplayPort better then HDMI?
Compared to standard HDMI 2.0, DisplayPort 1.4 is superior. DisplayPort 2.0 has also been announced, and it has an even higher maximum bandwidth than HDMI 2.1 at nearly triple the bandwidth of DisplayPort 1.4.
What is DisplayPort used for?
DisplayPort is an interface for digital displays, particularly computer monitors. It was developed by the Video Electronics Standards Association (VESA) as a high-performance replacement for other display modes such as VGA (Video Graphics Array) and DVI (Digital Visual Interface).
What is difference between DisplayPort and HDMI?
Both HDMI and DisplayPort support up to 8 digital audio channels at up to 24 bit and 192 kHz. The main difference is that HDMI features an audio return channel (ARC).
Do I need to connect both HDMI and DisplayPort?
In other words, only one monitor needs to be directly linked to your PC with DisplayPort. With HDMI, each monitor needs an HDMI cable to your PC. You can freely combine HDMI, DisplayPort, and DVI. One monitor can be HDMI, the other DisplayPort and so forth.
What is difference between DisplayPort and HDMI?
Both HDMI and DisplayPort support up to 8 digital audio channels at up to 24 bit and 192 kHz. The main difference is that HDMI features an audio return channel (ARC).
Can I plug DisplayPort into HDMI?
No, this is not possible. Please note that DisplayPort to HDMI cables (as with most cables involving protocol/signal conversion) are not bidirectional adapters, which means they only work in one direction — from a DisplayPort output to a HDMI input.
Can DisplayPort convert to HDMI?
HDMI to DisplayPort Conversion There are two types of conversion adapters that can be used, the first is an active adapter, and the second is a passive adapter type. Most adapters only carry a one-way signal.
Is a DisplayPort same as USB?
Yes. Just like in standard DisplayPort connectors and cables, DisplayPort over USB-C can take advantage of the four high-speed data lanes in the USB Type-C connector and cable to provide 4K display resolutions and beyond on supported products.
Why do TVs use HDMI instead of DisplayPort?
They control enough of the market that the smaller players are forced to pay up to be able to interop with the dominant companies’ products. HDMI is longer distance while DP is higher bandwidth. So based on typical cable length you get HDMI for TVs and projectors, and DP for monitors.
Does my laptop support DisplayPort?
Next to the ports of a Windows laptop are symbols / logos, which indicate what you can do with the port. Is there a symbol of a lightning (Thunderbolt 3) next to the USB C port? Then you can charge via this port and pass on a video signal and thus connect a monitor. This port supports DisplayPort alt mode.
Does DisplayPort carry USB?
DisplayPort (DP) is a digital display interface primarily used to transmit video signals to a display unit, such as a computer monitor. DisplayPort (DP) also support audio and USB signals.
What happens if I plug in HDMI and DisplayPort?
Yes, you can absolutely use an HDMI and DisplayPort at the same time. What is this? However, you will need to ensure your motherboard or GPU supports a dual monitor setup.
What happens if I use a DisplayPort to HDMI?
The system is completely plug and play, handles both video and audio, and does not need any driver to work. You even don’t really need a special adapter anymore, because there are DisplayPort to HDMI cables available on the market. There is normally no loss in quality when using such a dp to hdmi cable.
How do I know if my computer has DisplayPort?
Look for the DP icon by the connector on your device. If you can’t find it, but are certain your device came with a DisplayPort connection, check the instruction manual.
Should I use HDMI or DisplayPort 144Hz?
Can DisplayPort do 144Hz?
For 1080p 144Hz you will need DisplayPort, Dual-Link DVI, or HDMI 1.3 (or higher), while 1440p 144Hz requires either HDMI 2.0 or DisplayPort 1.2.
Is HDMI enough for 144Hz?
Does HDMI support 144Hz? Yes, depending on the HDMI version, resolution, and bandwidth. All versions of HDMI from HDMI 1.3 onward right through to HDMI 2.1 provide enough raw bandwidth for 144Hz, provided sacrifices are made in color, chroma, compression, or resolution.
Why do TVs use HDMI instead of DisplayPort?
They control enough of the market that the smaller players are forced to pay up to be able to interop with the dominant companies’ products. HDMI is longer distance while DP is higher bandwidth. So based on typical cable length you get HDMI for TVs and projectors, and DP for monitors.
What is difference between DisplayPort and HDMI?
Both HDMI and DisplayPort support up to 8 digital audio channels at up to 24 bit and 192 kHz. The main difference is that HDMI features an audio return channel (ARC).
Where does a DisplayPort plug into?
You’ll find DisplayPort connectors on high-end PC graphics cards, on certain laptops, and on a number of capable monitors that support higher resolutions and refresh rates.

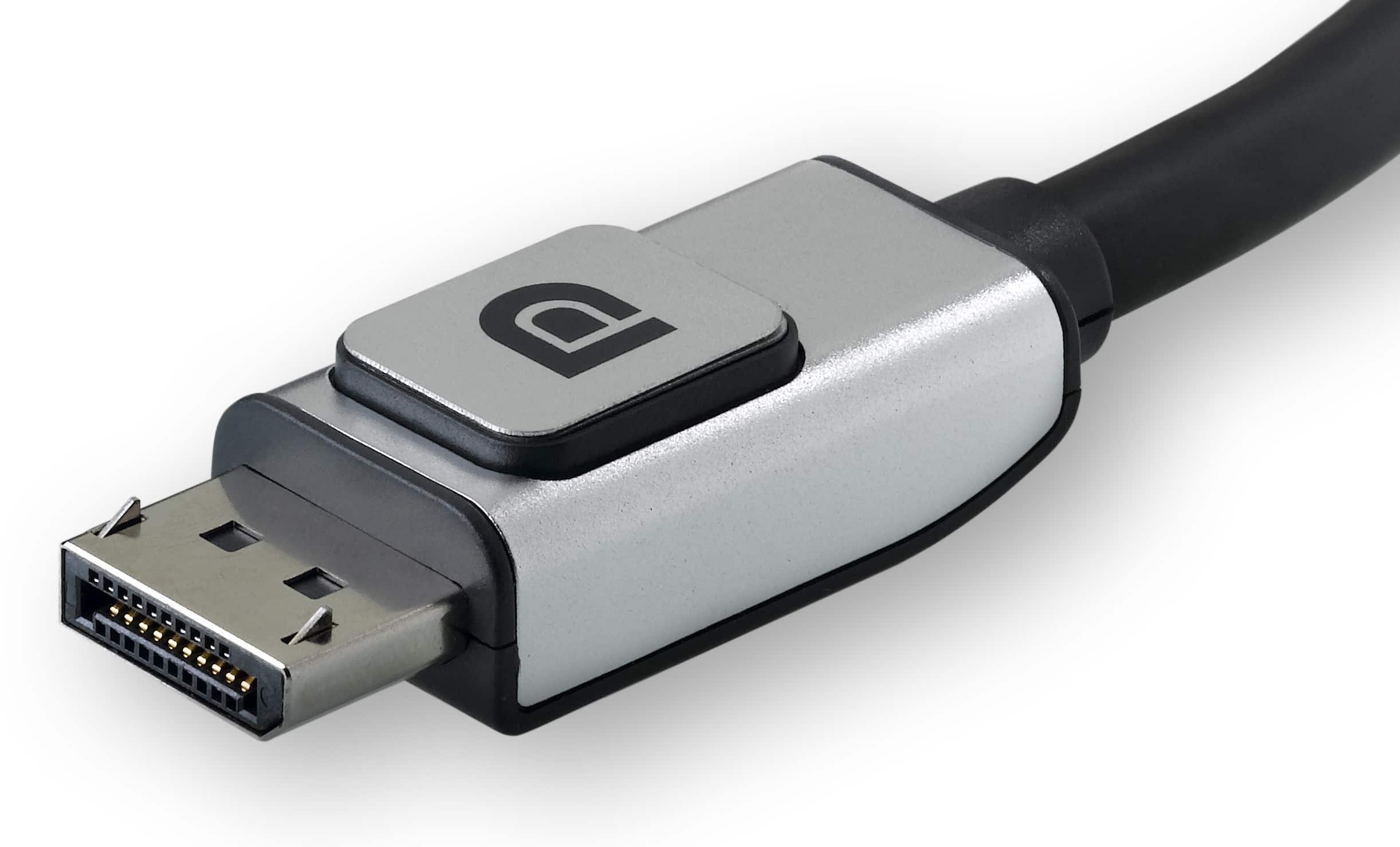

How does a DisplayPort look like?
DisplayPort looks similar to HDMI but is a connector more common on PCs than TVs. It still allows for high-definition video and (in many cases) audio, but its standards are a bit different.
