What is a dual mode DisplayPort?

A Dual-Mode DisplayPort source is a device, such as personal computer, that can logically output either DisplayPort or TMDS (Transitional-Minimized Differential Signaling) from the DisplayPort output connector, enabling the support of DisplayPort, DVI, and HDMI monitors.

How do I know if my DisplayPort is dual mode?

A quick way to check whether you can use a passive adapter is to see if the DisplayPort or Mini DisplayPort source has the DP++ symbol above it. The symbol is a D with a P inside of it, with two + signs to the left, one on top of the other.

Can you run 2 monitors off 1 DisplayPort?

DisplayPort Multi-Stream Transport allows you to daisy chain monitors with DisplayPort 1.2 ports. Daisy chaining describes the ability to connect a series of monitors to a single video output port on your computer or docking station.

Is DisplayPort 1.2 dual mode?

Important features of DisplayPort 1.2: Dual-mode DisplayPort PCs can be connected to DVI, VGA and HDMI monitors and projectors.

What is dual mode input?

Dual-mode is the ability of the graphics processor unit (GPU) to transmit either DisplayPort or HDMI/DVI data over the DisplayPort signal lines while supporting the required control signals. The SN75DP129 translator has one dual-mode DisplayPort input and one transition-minimized differential signaling (TMDS) output.

Do you lose quality with DisplayPort to HDMI?

You even don’t really need a special adapter anymore, because there are DisplayPort to HDMI cables available on the market. There is normally no loss in quality when using such a dp to hdmi cable.

How do you tell which DisplayPort you have?

How do I tell my version of DisplayPort? Unfortunately there’s no way to tell from the hardware itself what version of DisplayPort it will support. Check the original specifications of your device, or contact the manufacturer.

Do I need 2 display ports for 2 monitors?

At the minimum, you’ll need two video-out ports to connect both your monitors. Generally, there are four types of ports: VGA, DVI, HDMI, and Display Port. Note: If you do not have the required ports, then you’ll need an external connector/adapter to hook up the monitors to the system.

Can you run 2 monitors off 1 HDMI port?

The only thing you need to do is connect your first monitor directly to the HDMI port. Then, use another cable that supports both your second monitor and PC. For example, if your display and PC both support VGA ports, insert one end of the VGA cable to your monitor’s port. Then, connect another end to your PC’s port.

Does DisplayPort 1.4 have dual mode?

Other DisplayPort 1.4 benefits include support for Dual-mode for DVI and HDMI adapters, making it possible to connect a DisplayPort 1.4 device to an HDMI 2.0 source, or vice versa.

Can DisplayPort 1.2 do 144Hz?

What DisplayPort should I use?

Why is dual mode needed?

The dual-mode operations in the operating system protect the operating system from illegal users. We accomplish this defense by designating some of the system instructions as privileged instructions that can cause harm. The hardware only allows for the execution of privileged instructions in kernel mode.

What is dual mode and multi mode?

The concept of modes of operation in operating system can be extended beyond the dual mode. This is known as the multimode system. In those cases the more than 1 bit is used by the CPU to set and handle the mode. An example of the multimode system can be described by the systems that support virtualisation.

Why dual mode operation can protect system?

The dual mode of operation provides us with the means for protecting the OS from errant users-and errant users from one another. If an attempt is made to execute a privileged instruction in user mode, the hardware does not execute the instruction but rather treats it as illegal and traps it to the OS.

Does DisplayPort 1.4 have dual mode?

Other DisplayPort 1.4 benefits include support for Dual-mode for DVI and HDMI adapters, making it possible to connect a DisplayPort 1.4 device to an HDMI 2.0 source, or vice versa.

How do I know if my DisplayPort is working?

Unplug your device from the DisplayPort monitor and press the Windows logo key + Ctrl + Shift + B. Your PC’s screen will go black for about 2 seconds, and you should also hear a beep. Plug the DisplayPort cable back into your computer and check if the monitor receives the input signal this time.

Can DisplayPort do 144Hz?

For 1080p 144Hz you will need DisplayPort, Dual-Link DVI, or HDMI 1.3 (or higher), while 1440p 144Hz requires either HDMI 2.0 or DisplayPort 1.2.

How do I know if my monitor has DisplayPort?

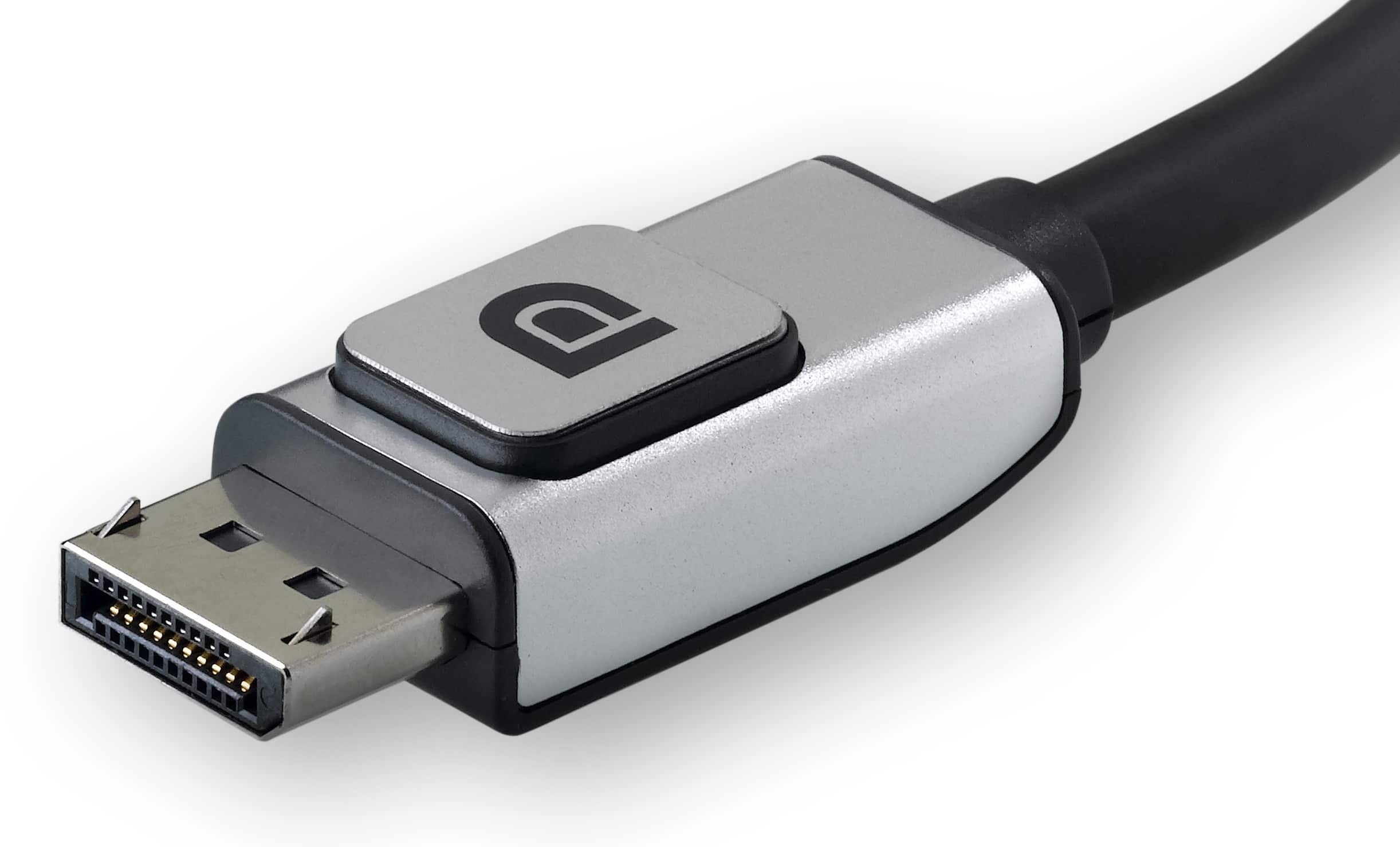

Look for the DP icon by the connector on your device. If you can’t find it, but are certain your device came with a DisplayPort connection, check the instruction manual.

Can I plug DisplayPort into HDMI?

No, this is not possible. Please note that DisplayPort to HDMI cables (as with most cables involving protocol/signal conversion) are not bidirectional adapters, which means they only work in one direction — from a DisplayPort output to a HDMI input.

Why are there no HDMI to DisplayPort cables?

The HDMI specification does not support the DisplayPort LVDS signal type, and if the HDMI TMDS is plugged into a DP monitor, it will not work. The DisplayPort receptacle on a monitor or display will only accept the LVDS 3.3v DisplayPort signal type.

Can I convert DisplayPort to HDMI?

An Active DisplayPort adapter has an integrated circuit to convert a DisplayPort signal to HDMI, DVI, or VGA. DisplayPort uses a different digital signaling type than HDMI and DVI (which use the same type), both of these signaling types are very different from VGA’s analog signal.
