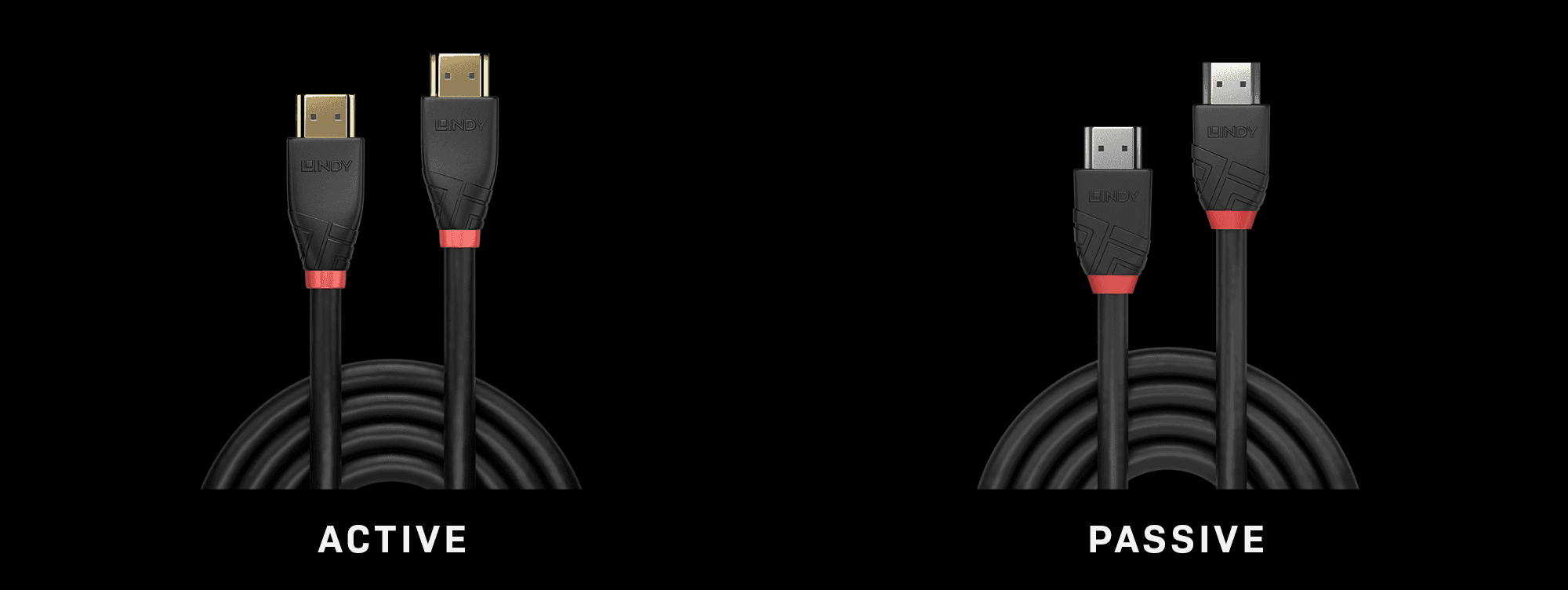

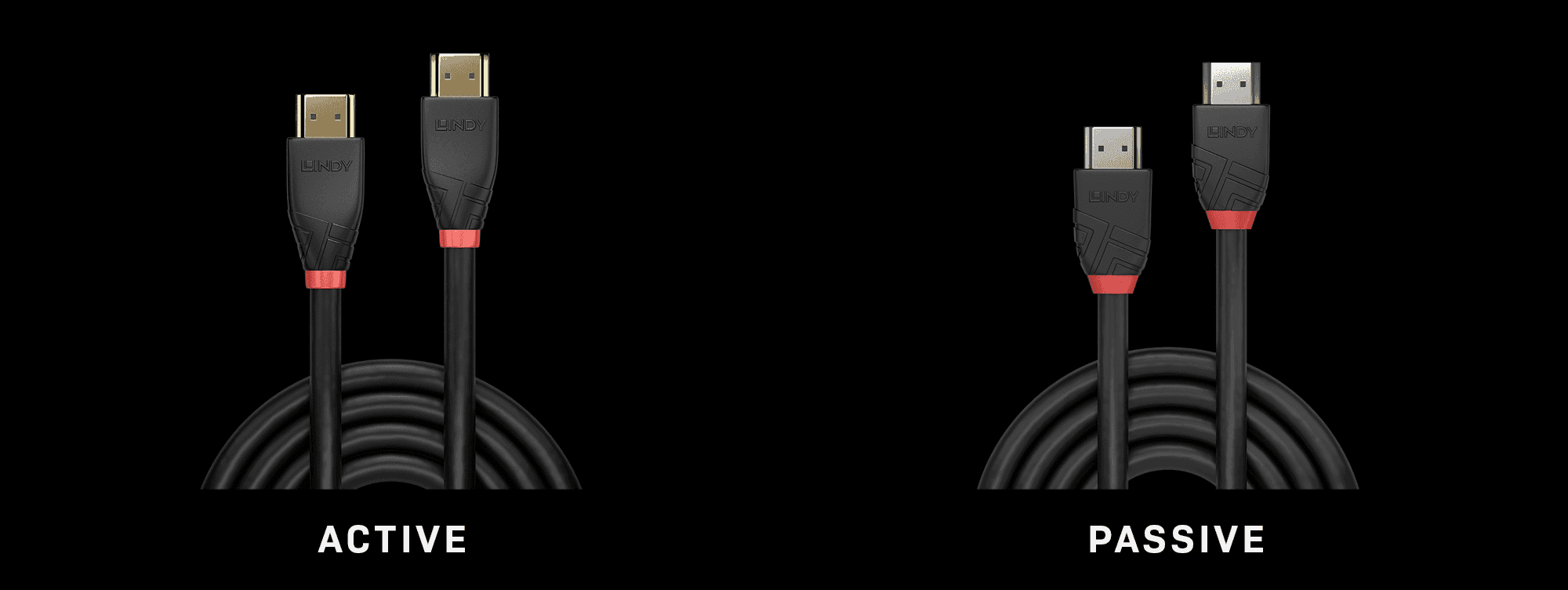

What is the difference between active and passive cables?


A quick explanation is that a passive cable does not draw power from the switches, while active ones do. This is due to signal strength. These type of cables need a signal boost when they get to a certain length. In short, 5m or less are passive cables, over this require the cable to be active.

What is the difference between an active and passive Thunderbolt cable?

An active cable uses transceivers on either end to regulate the data transfer over the cable, allowing it to transmit over longer distances. A passive Thunderbolt 3 cable can only transmit at the full 40 Gb/s data rate over a distance of 0.5 m (18 inches).

Is Apple Thunderbolt 3 cable active or passive?

At 2m long and with 40 Gbps speeds, Apple’s Thunderbolt 3 cable is active (with chips on each end), rather than passive. On top of that, it’s one of the few certified cables that supports the full Thunderbolt spec, including DisplayPort and 10 Gbps USB-C 3.1 Gen 2.

Does Thunderbolt 4 need a special cable?

Thunderbolt 4 is the new connection standard in town and you need Intel-certified cables to take advantage of all its benefits.

Why are Thunderbolt cables so short?

The Thunderbolt 3 standard has been available for roughly four years now, but cable lengths have so far generally been limited to a couple of meters due to signal degradation over long distances of copper wiring.

What is the difference between active and passive HDMI cables?

Passive HDMI cables have limited maximum lengths, while active HDMI cables can go far longer – many times longer than passive alternatives if you use an active optical cable – without losing signal strength or image clarity.

Are Thunderbolt and USB-C cables the same?

USB-C ports and Thunderbolt ports are universal, but they’re not entirely the same. Thunderbolt ports are fully compatible with USB-C devices and cables, but Thunderbolt ports offer several features that make them stand out from USB-C ports.

What is the difference between Thunderbolt 3 and 4?

In fact, Thunderbolt 3 was required to support only one external 4K monitor, whereas every Thunderbolt 4 laptop has to support two 4K displays or one 8K display. Thunderbolt 4 now ensures that you can wake a computer with the shake of a mouse or the tap of a keyboard on Thunderbolt 4 docks.

How long can you run a thunderbolt 3 cable?

Are Apple cables Thunderbolt 3?

The Apple Thunderbolt 3 (USB-C) Cable (0.8 m) connects a Mac that has a Thunderbolt 3 (USB-C) port to a device that has a Thunderbolt 3 (USB-C) or USB-C port.

Why is the Apple Thunderbolt 4 cable so expensive?

Thunderbolt’s tight manufacturing tolerances make the cables expensive, and when you extend the cables to three meters, the tolerances are even more important. So it seems that high Thunderbolt prices are the norm and aren’t ever going to drop by much.

Can I use a USB-C in a Thunderbolt 4 port?

Thunderbolt 4 ports are compatible with many connection standards, including previous versions of Thunderbolt™, USB, DisplayPort, and PCle. The ports fit standard USB-C type connectors.

What do you mean by Thunderbolt?

Definition of thunderbolt 1a : a single discharge of lightning with the accompanying thunder. b : an imaginary elongated mass cast as a missile to earth in the lightning flash. 2a : a person or thing that resembles lightning in suddenness, effectiveness, or destructive power. b : a vehement threat or censure.

How far can you run a Thunderbolt cable?

How long can a USB cable be before the signal degrades?

The USB 2.0 specification limits the length of a cable between USB 2.0 devices (full-speed or hi-speed) to 5 meters (or about 16 feet and 5 inches). Bummer!

How far can USB C be extended?

Q: What are the length limitations of USB Type-C cables? A: For the full features of 3.1, 1m is the length limitation. Longer cables can still be used with lower speeds of data transfer. 3m for USB 3.0 and 4m for USB 2.0.

Are Thunderbolt 3 and Thunderbolt 4 cables the same?

Thunderbolt 3 is fully supported by Thunderbolt 4, meaning you can both plug Thunderbolt 4 cables into Thunderbolt 3 ports (although there’s no guarantee you’ll get the same speeds or features) and Thunderbolt 3 cables are fully compatible with Thunderbolt 4 ports; In that latter case, you should still be able to enjoy …

How do I know if I have Thunderbolt 4 cable?

Since Thunderbolt 4 includes support for USB and DisplayPort, if you see the Thunderbolt logo – a small lightning bolt and the number four on the cable – you know that connection can do it all.

Is Thunderbolt 4 and USB4 the same?

Thunderbolt 4 and USB4 have the same specs, but Thunderbolt 4 is more reliable with tighter minimum specs. Both can drive dual 4K displays, transfers data at 40Gbps, and provide power to charge a laptop. But USB4 has lower minimum specs, and makers can choose not to implement all the features to minimize costs.

Are Thunderbolt 4 cables backwards compatible?

Is Thunderbolt 4 backwards-compatible? Yes. Thunderbolt 4 is backwards-compatible with older Thunderbolt hardware (a Thunderbolt setup will run at the speed of its slowest component), and cross-compatible with most USB4 devices, as USB now incorporates part of the Thunderbolt spec.

Do you need an active HDMI cable?

For most HDMI cable runs an active HDMI cable won’t be necessary. However, if you need to use a really long cable run (likely 30 feet or more), an Active HDMI cable may make the difference between a data-intensive signal making it or not, as HDMI cables generally become less reliable the longer they are.

How do I know if my USB-C port is Thunderbolt?

How do i find out if my computer, display or cable is Thunderbolt™ capable? The port’s appearance is physically the same as miniDP (DisplayPort™). To confirm you have a Thunderbolt™ port on your computer, display, or cable check for the Thunderbolt™ symbol next to or above the port or connector.
