What pins turn on a power supply?

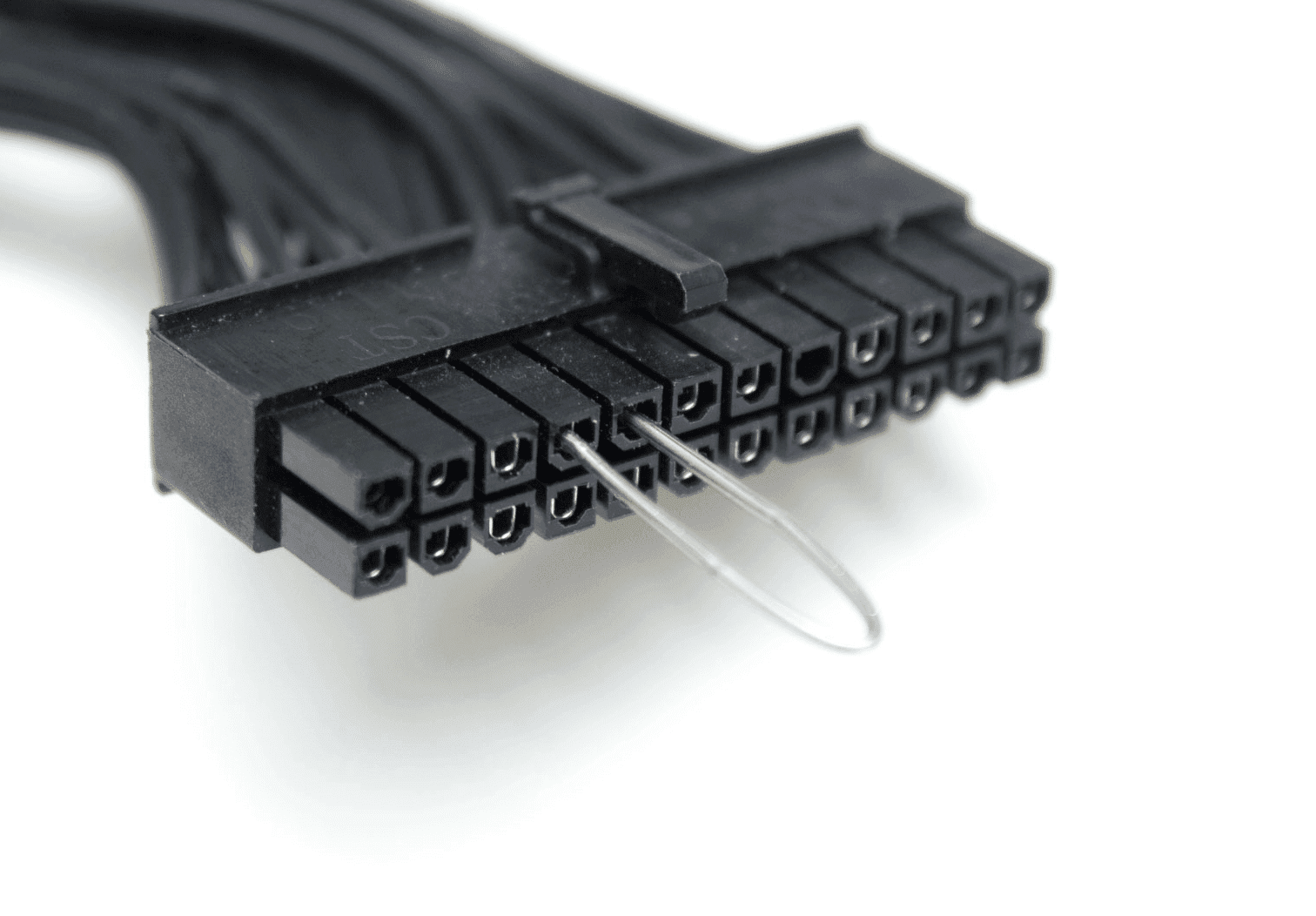

To start up a stand alone PSU for either testing purposes or as a bench power supply, we need to short together pin 14 – Green (Power-ON) to one of the common black wires (ground) which is how the motherboard tells the power supply to turn “ON”.

What wires turn on a PC power supply?

Turning on the Power Supply It is designed to not turn on unless it is connected to a computer motherboard. This is controlled by the green “power on” wire. Connecting this wire to ground (any black wire) will allow the power supply to turn on.

How does a power supply turn on?

The PSU needs a connection to the motherboard to be told to turn on. When you press the power button on your case, it jumps the green wire to a ground, telling the PSU to turn on. When this “jump” is broken, the PSU shuts off. The green wire on ATX plug is the “power on” line and is pin #14.

How do you jump start a power supply?

Unplug the AC power cord from the power supply. Disconnect all peripherals and devices from the power supply. Plug the AC power cord back into the power supply and make sure that the AC power is coming directly from wall outlet (do not use power strips, extension cables or splitters).

How does a power supply turn on?

The PSU needs a connection to the motherboard to be told to turn on. When you press the power button on your case, it jumps the green wire to a ground, telling the PSU to turn on. When this “jump” is broken, the PSU shuts off. The green wire on ATX plug is the “power on” line and is pin #14.

Why does my power supply not turn on?

There are many reasons your PSU won’t turn on. Most of them have to do with its incoming power flow or how it’s connected. If your PSU isn’t getting enough power from the wall outlet, it may not be able to turn on. Even if an outlet is working for another device, it might not be providing quite enough for the PSU.

Will a power supply turn on without a motherboard?

What is on and off on a power supply?

Power buttons and switches are usually labeled with “I” and “O” symbols. The “I” represents power on, and the “O” represents power off.

How does a motherboard turn on the power supply?

When the motherboard (ok, a small microprocessor in the chipset) decides to turn the system on, it connects the green wire to ground signaling the power supply to come to full power. The power supply then does its thing and signals it is ready by asserting power ok.

Is it safe to jump start a power supply?

It should work ok. “Jumping” a psu basically completes the circuit to power it on, same thing as a power switch. The switch is in a different location but acts as a contact between the two points on the psu to turn it on. A jumper is just a crude version of the same thing.

What parts does a PC need to turn on?

CPU, a stick of memory, and a GPU. You don’t really need the GPU, but without it you can’t tell if you are actually getting to POST or not.

How does a motherboard turn on the power supply?

When the motherboard (ok, a small microprocessor in the chipset) decides to turn the system on, it connects the green wire to ground signaling the power supply to come to full power. The power supply then does its thing and signals it is ready by asserting power ok.

Will a PC power supply turn on without motherboard?

Under normal circumstances, all power supplies (including those with an on and off switch) and their fans turn on due to a signal they receive from the motherboard. Therefore, unless your power supply connects to a working motherboard that sends that signal, the power supply will not work.

What wires do you need to connect a PC?

Connect all cables Most monitors use either a DVI, VGA, or HDMI connector and plug into the corresponding port on the back of the computer. If your monitor only has a VGA plug and your computer only has a DVI connection, or visa versa, you need a video converter to connect your monitor.

How does a power supply turn on?

The PSU needs a connection to the motherboard to be told to turn on. When you press the power button on your case, it jumps the green wire to a ground, telling the PSU to turn on. When this “jump” is broken, the PSU shuts off. The green wire on ATX plug is the “power on” line and is pin #14.

Is there a fuse in a computer power supply?

Power supplies have one fuse. But it’s soldered on, so you’ll have to get a new PSU anyway, even if the fuse is just broken. That is, unless you have the knowledge to tinker with a power supply and aren’t scared of the capacitators in there.

Where is the fuse for power?

The fuse is usually located on one corner of the power supply. Use an ohm meter to check the fuse.

Can a power supply turn on without a CPU?

No, it is not possible for a computer to power on if there’s no CPU present. You won’t even be able to perform a POST or Power On Self Test to verify that the keyboard, mouse, and other hardware connected to your motherboard is working or not.

Can a PC still turn on without RAM?

No, you may be able to turn on your PC without RAM, but you’ll immediately hear several beeps that show the RAM is missing. Every computer system needs RAM to send information and instructions to the CPU.

How does a power supply turn on?

The PSU needs a connection to the motherboard to be told to turn on. When you press the power button on your case, it jumps the green wire to a ground, telling the PSU to turn on. When this “jump” is broken, the PSU shuts off. The green wire on ATX plug is the “power on” line and is pin #14.

How does a power supply turn on?

The PSU needs a connection to the motherboard to be told to turn on. When you press the power button on your case, it jumps the green wire to a ground, telling the PSU to turn on. When this “jump” is broken, the PSU shuts off. The green wire on ATX plug is the “power on” line and is pin #14.

How does a power supply turn on?

The PSU needs a connection to the motherboard to be told to turn on. When you press the power button on your case, it jumps the green wire to a ground, telling the PSU to turn on. When this “jump” is broken, the PSU shuts off. The green wire on ATX plug is the “power on” line and is pin #14.
