In the BIOS Utility dialog, select Advanced -> IDE Configuration. The IDE Configuration menu is displayed. In the IDE Configuration menu, select Configure SATA as and press Enter. A menu is displayed listing the SATA options.
What is SATA mode in BIOS?
Serial Advanced Technology Attachment, also known as Serial ATA or SATA, enables mass storage devices, such as hard drives and optical drives, to communicate with the motherboard using a high-speed serial cable over two pairs of conductors.
Where is SATA configuration in BIOS setup?

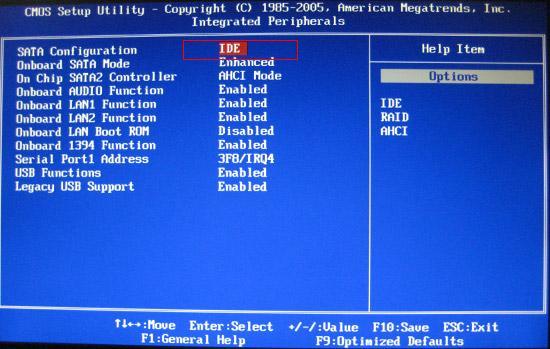

The user will need to check the “SATA Configuration” type in BIOS Setup Utility as shown below: Boot the system. Press F1 to enter into the BIOS Setup Utility. Choose the menu “Advanced -> SATA Configuration”.
How do I check SATA mode?
On the left in the device selection panel go to the Motherboard section. The right side of the window will show which SATA ports are available. If 6 Gb / s is written near the port, it means that it is SATA 3 standard. If 3 Gb /s is written near the port, it means that it is SATA 2 standard.
What is SATA AHCI mode BIOS setting?
Advanced Host Controller Interface, or AHCI, is a technical standard for an interface that enables software to communicate with Serial ATA (SATA) devices. These peripheral component interconnect (PCI)-class devices move data between system memory and SATA storage media.
What should SATA mode be set to?
If you are using a SATA hard drive, set your BIOS to RAID mode. RAID mode provides the greatest overall flexibility and upgradeability because it allows your system to be RAID ready and enable AHCI.
Which SATA operation ATA or AHCI?
If you have SATA drives, use AHCI. ATA runs the SATA controller in compatibility mode and loses the native features. The only OS you’ll probably have trouble with is XP. With XP, you’ll either need to hit the F6 key and provide a floppy with drivers, or slipstream the install.
Why is my SATA SSD not detected?
The BIOS will not detect a SSD if the data cable is damaged or the connection is incorrect. Serial ATA cables, in particular, can sometimes fall out of their connection. Be sure to check your SATA cables are tightly connected to the SATA port connection.
How do I know if my BIOS is SATA?
In the BIOS Utility dialog, select Advanced -> IDE Configuration. The IDE Configuration menu is displayed. In the IDE Configuration menu, select Configure SATA as and press Enter. A menu is displayed listing the SATA options.
Is AHCI same as UEFI?
Although people use BIOS and UEFI interchangeably they are not the same. AHCI is a feature of both BIOS and UEFI, however many older systems with BIOS do not have AHCI.
How do I know if my SATA is in AHCI mode?
Click the arrow next to “IDE ATA/ATAPI Controllers” to display the list of controller drivers currently used by your system. Check for an entry that contains the acronym “AHCI.” If an entry exists, and there is no yellow exclamation mark or red “X” over it, then AHCI mode is properly enabled.
Do I need AHCI for SSD?
AHCI mode as previously explained enables NCQ (native command queuing) which is really not required for SSDs as they do not need optimizing in this way as there is no physical movement of heads or platters. In many cases, it can actually hinder SSD performance, and even reduce the lifetime of your SSD.
Which is faster RAID or AHCI?
Hardware RAID arrays are faster, for example, than software RAID. Similarly, the RAID level also impacts performance. RAID 1 provides redundancy but does not deliver any additional performance beyond what an individual hard disk supplies.
Should SATA mode be AHCI or IDE?
Should SATA mode be AHCI or IDE? Generally speaking, IDE mode provides better compatibility for the older hardware. But the hard drive may perform more slowly in IDE mode. If you want to install more than one hard drive and use the advanced SATA features, AHCI mode is a better choice.
What SATA mode should I use for SSD?
So, if you are using a SATA SSD or HDD, you can set up the mode to utilize the advantages of the SATA interface. With the emergency of NVMe, more and more SSDs are designed with the NVMe protocol. Many hardware and SSD manufacturers recommend that AHCI mode can be used for SSD drives.
Should I use AHCI?
However, AHCI is a better and more modern option and you should always use it when you can. From that article: If your application requires hot-plug drive support or redundant disks, then AHCI is the only choice. IDE mode can occasionally benefit from slightly faster read and write speeds in some tests.
Which is better AHCI or ATA?
AHCI is not without its advantages. It may not be worthwhile to go into the details of the specification but AHCI unlocks two features that you would not find on hard drives that use ATA. The first is hot-plugging or the ability to add/remove hard drives from the system without having to reboot your computer.
Do I need to change BIOS settings for SSD?
For ordinary, SATA SSD, that’s all you need to do in BIOS. Just one advice not tied to SSDs only. Leave SSD as first BOOT device, just change to CD using fast BOOT choice (check your MB manual which F button is for that) so you don’t have to enter BIOS again after first part of windows installation and first reboot.
How do I get SSD on boot menu?
Choose Settings and select Boot. Boot options are listed, and you can customize your priority list. Click on Boot Option #1. A list of available devices will appear and choose SSD from that list.
Is IDE or AHCI better?
But AHCI is considerably faster than IDE, which is an older niche technology for outdated computer systems. AHCI do not compete with RAID, which provides redundancy and data protection on SATA drives using AHCI interconnects. In fact, enabling RAID on Intel motherboards enables AHCI as well.
Why is my PC not detecting my hard drive?
If your new hard disk is not detected by or Disk Manager, it could be because of a driver issue, connection issue, or faulty BIOS settings. These can be fixed. Connection issues can be from a faulty USB port or a damaged cable. Incorrect BIOS settings may cause the new hard drive to be disabled.
Is AHCI faster?
AHCI stands for Advanced Host Controller Interface and is a faster mode of operation compared to IDE.
