WOL does not work when the system is running on battery. This is by design. Confirm that the link light remains on when the system is powered off. If there is no link light, then there is no way for the NIC to receive the magic packet to wake the system.
Does Wake-on-LAN only works in sleep mode?
Overview. Wake-on-LAN (WOL) allows a computer to be powered on or awakened from standby, hibernate or shutdown from another device on a network. The process of WOL is the following: The target computer is in standby, hibernate or shutdown, with power reserved for the network card.
Does Wake-on-LAN work when computer is off?
When all requirements are met, you will be able to use Wake On LAN to switch on a computer that is in sleep mode (PC and Mac) or powered off (PC).
Can you WoL over WIFI?
Wake-on-LAN (WoL) is a hardware/software solution that wakes up your computer remotely from a low power mode or off mode. The computer must have an Internet connection and be plugged in to power for WoL to work. Wake-on-LAN can be configured to use Ethernet or Wireless.
Does my motherboard support WoL?
WoL is dependent on two things: your motherboard and your network card. Your motherboard must be hooked up to an ATX-compatible power supply, as most computers in the past decade or so are. Your Ethernet or wireless card must also support this functionality.
How long does Wake-on-LAN take?
If I open the remote folder on the client and go to the server it will take about 45 seconds until the server wakes up. Once the server is awake the connection to the client machine is working in a second or two. In the past I used wake on LAN with Windows XP and it did not take so long.
What port does Wake-on-LAN use?
Wake-on-LAN uses UDP port 9 by default, to send WOL messages. This port is available for use on most Windows computers.
Is Wake-on-LAN a security risk?
Most “Wake on LAN” tools send it through UDP, but the specific protocol doesn’t matter so long as it gets delivered to the NIC. This feature is safe to use; there are many Windows apps for Wake-on-LAN that generate such packets (e.g. this one).
Is Wake-on-LAN enabled by default?
Using WOL (Wake On LAN) it is possible to wake up your computer using the Unified Remote app. However, this feature is typically not enabled by default. On some computer you may have to enable a BIOS setting to allow WOL. There are plenty of guides on Google for this.
Does Windows 10 support Wake LAN?
Wake on Lan is a very neat Windows 10 and Windows 11 feature, that does not get much attention. Used by network administrators for years, this feature allows the user to remotely turn on their PCs. You can use it at home too, to remotely get wake up your PC via the Internet.
What is Wake-on-LAN in BIOS?
Wake-on-LAN is a special option of the PC’s boot firmware — BIOS or, on modern systems, UEFI, that allows you to power on the computer by sending a special signal (a so-called ‘magic’ packet) to that computer over the local network.
Does WOL work with fast startup?
Basically fast startup is sort of like a hibernated start, key files are loaded from a disk image to memory to allow faster boot, but it seems to be incompatible with WOL.
Can I turn on my PC remotely?
Use Teamviewer Select Options. Under the General section, select the Configure button next to Wake-on-LAN. Select TeamViewer IDs within your network option. Enter the TeamViewer ID of the PC that you want to turn on remotely.
What is shutdown Wake-on-LAN Realtek?
What is Wake-On-LAN (WOL) Wake-On-LAN is an Ethernet networking standard that allows a properly configured network computer to be turned on or awakened by a network message. Wake-on-LAN (sometimes abbreviated WoL) is an industry standard protocol for waking computers up from a very low power mode remotely.
How do you send a Wake-on-LAN command?
Open the Command Prompt on the computer from which you will be sending the wake-on-LAN command. Type “ping” followed by the computer that you will be sending the wake-on-LAN command’s IP address. For example, if the IP address is “192.168. 1.1,” type “ping 192.168.
How do I disable Wake-on-LAN?
Go to Control Panel > System > Power > Wake-on-LAN (WOL). Select Enable or Disable. Click Apply.
Does Wake-on-LAN only work with Ethernet?
Pretty much any modern Ethernet adapter will support Wake-on-LAN, but wireless adapters rarely do. This means the device sending the magic packet can be on Wi-Fi, but the one receiving it will likely need to be plugged in via Ethernet for this to work.
Does Wake-on-LAN require static IP?
The WOL computer should have a static IP address, one manually assigned or through static DHCP.
Is port forwarding Wake-on-LAN safe?
Any port forwarding is a security risk. If you’re forwarding to a specific (unicast) IP address with a static ARP entry in the router you can minimize the risk. The MAC address in the static ARP entry isn’t even relevant – if it’s unknown or its node is down it’s flooded to the entire network anyway.
What is Wake-on-LAN used for?
Wake on LAN is a technology that allows a network professional to remotely power on a computer or to wake it up from sleep mode. By remotely triggering the computer to wake up and perform scheduled maintenance tasks, the technician does not have to physically visit each computer on the network.
What is WOL speed?
Wake-On-LAN and Shutdown Link speed: Specifies the link speed of the adapter when the computer is in sleep or hibernation.
How do I setup a Wake-on-LAN router?
Go to Device Manager( in System) -> Select your network adapter and click right button -> Select Properties -> Click Allow this device to wake the computer and Only allow a magic packet to wake the computer.
Why is Wake on LAN not working in Windows 10?
If Wake on LAN is not working in Windows 10, the problem might be related to your network driver. According to users, they managed to fix the problem simply by installing the older version of their network driver.
Why doesn’t wake-on-LAN work over Wi-Fi?
A laptop (or wireless-only desktop) that isn’t authenticated with the network and is shut down has no way to listen for the magic packet, and won’t know if one is sent over the network. For most computers, Wake-on-LAN works over Wi-Fi only if the wireless device is the one sending the WoL request.
Is it safe to use Wake on LAN?
However, Wake on LAN, like many features that offer additional convenience, can also create a security risk by enabling power up capability on a computer which should only be powered up locally. What is the make and model of your computer? I suggest you to install Ethernet card drivers from the manufacturers website.

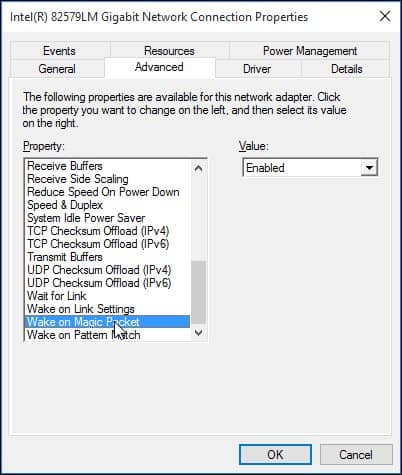

How to enable Wake-on-LAN feature in Windows 10?
Up next from the window that will be displayed choose “ configure ”, click on “ advanced tab” and pick the “ Enable PME ” option. 3. Change the value into “enable”. The Wake-on-Lan feature should be working just fine on your Windows 10. Please reply with the results, we will be glad to help you further.
