Can I link 2 monitors together with HDMI?
Connect the monitors to your computer Take a standard HDMI cable, run one end from the PC’s output, and run the other to your first monitor’s input. Windows will automatically detect the display. By default, the first display connected will be the main one. Repeat this process for your second monitor.
Can you daisy chain from HDMI to DisplayPort?
Q9. Can a daisy chain signal be established from a HDMI or DVI-D Port? No. This is not supported, even when converting the signal to USB Type-C or DisplayPort.
How do I extend two monitors with one HDMI port?
An HDMI splitter comes with a cable attached. To connect two monitors, connect one end of the HDMI splitter to the computer or laptop’s HDMI output port. Now, use another HDMI cable. Connect one end of this cable to the HDMI splitter’s input port and another end to the computer or laptop’s HDMI port.
Do you need two HDMI ports for dual monitors?
At the minimum, you’ll need two video-out ports to connect both your monitors. Generally, there are four types of ports: VGA, DVI, HDMI, and Display Port. Note: If you do not have the required ports, then you’ll need an external connector/adapter to hook up the monitors to the system.
Can you run 2 monitors off 1 DisplayPort?

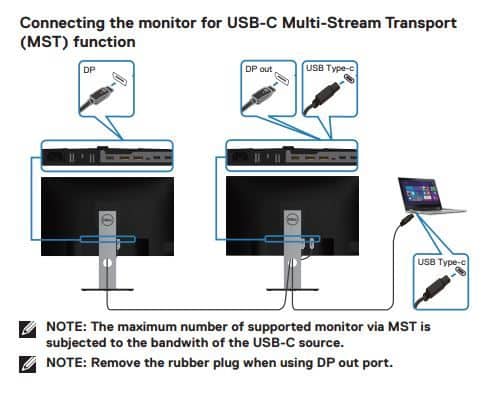

DisplayPort Multi-Stream Transport allows you to daisy chain monitors with DisplayPort 1.2 ports. Daisy chaining describes the ability to connect a series of monitors to a single video output port on your computer or docking station.
Is DisplayPort better than HDMI?
Compared to standard HDMI 2.0, DisplayPort 1.4 is superior. DisplayPort 2.0 has also been announced, and it has an even higher maximum bandwidth than HDMI 2.1 at nearly triple the bandwidth of DisplayPort 1.4.
Can you extend 2 monitors with HDMI Splitter?
You can use an HDMI splitter to extend the display to several monitors at a time, but each of the monitors connected to the HDMI splitter will share the same signal.
Can I connect two monitors to my laptop with only one HDMI port?
Sometimes you have only one HDMI port on your computer (typically on a laptop), but need two ports so that you can connect 2 external monitors. In this case: You can use a ‘switch splitter’ or ‘display splitter’ to have two HDMI ports.
How do I connect 2 HDMI monitors to my laptop?
If your monitor and laptop or PC have one or two HDMI ports, you just need a single HDMI cable. If you want to connect two monitors but only have one HDMI port, use an HDMI splitter. Be sure that the splitter has the same refresh rate as the HDMI cable.
Do HDMI splitters allow for dual monitors?
Unfortunately, you cannot use an HDMI splitter for a dual monitor. If you plug an HDMI splitter into a dual monitor, you will only duplicate the original monitor’s content. HDMI splitters are designed to send audio and video from a single screen to other screens. It cannot handle data from dual monitors.
Can I use an HDMI splitter to extend not duplicate my laptop screen across two monitors?
An HDMI splitter can’t extend the display to two monitors. What a splitter does is mirror the original image to 2 or more displays. A USB-to-HDMI adapter may effectively add a second HDMI port, which will extend the display.
Can I use HDMI and DisplayPort at the same time for dual monitors?
With HDMI, each monitor needs an HDMI cable to your PC. You can freely combine HDMI, DisplayPort, and DVI. One monitor can be HDMI, the other DisplayPort and so forth. Video connections are one thing, but remember your extra monitors won’t run themselves.
What cable is needed to connect 2 monitors?
On Windows, this is typically an HDMI cable, but check before you purchase, as it could be a VGA or DVI cable that you need. If you use a Mac, you will need a video cable for each display, which might require purchasing an adapter.
Why do monitors have 2 HDMI ports?
Having multiple HDMI ports protects the monitor from being constantly plugged in and out, i.e. no need to change cables manually and this can save time as well. 4 Having 2 or more HDMI ports saves desk space as it doesn’t require any tools like an HDMI switch and splitter.
Do both monitors need to support daisy chain?
To daisy chain your monitors, you need a few specific things. First, you need two or more monitors that support at least DisplayPort 1.2. Displays that will act as middle-links in the chain must include DisplayPort output ports as well as input ports.
Can you plug HDMI into DisplayPort?
No, this is not possible. Please note that DisplayPort to HDMI cables (as with most cables involving protocol/signal conversion) are not bidirectional adapters, which means they only work in one direction — from a DisplayPort output to a HDMI input.
Is HDMI enough for 144hz?
HDMI. Nowadays, most monitors, TVs and graphics cards feature at least an HDMI 1.4 port which is enough for 144Hz at 1080p, 75Hz at 1440p and 30Hz at 4K.
Can you convert HDMI to DisplayPort?
The Cable Matters HDMI to DisplayPort Adapter provides a simple solution for connecting a laptop with an HDMI port to a DisplayPort monitor. Connect a USB cable to a computer USB port or USB wall charger to power the conversion from HDMI to DisplayPort.
What is the difference between HDMI Switch and HDMI Splitter?
We’ll get into more detail, but the short version is that an HDMI switch takes multiple sources and lets you choose (switch) between them, sending one cable to your TV. As you’ve probably figured out already, a splitter takes one signal and splits it across multiple HDMI cables.
Can you split an HDMI port?
An HDMI splitter is one of the simplest and most versatile ways of splitting an HDMI signal to send it across multiple displays. It’s easy to deploy by just plugging it in and setting it up in your living room or workspace to connect to the source and output to multiple devices.
Can USB to HDMI extend display?
The USB to HDMI 4K adapter lets you extend or mirror your primary display onto an Ultra HD monitor or television, giving you the additional screen space you need to simplify multitasking and maximize your productivity.
